Bad audio quality or no audio at all

Go down

Bad audio quality or no audio at all Empty Bad audio quality or no audio at all

Post by ahsanul.moyeen Thu Apr 22, 2021 7:13 am

Hello,

That's, at least, the second time where we have an issue with RTP with the SBC pair connected to 'B' (DIN_1 and DIN_2).
Customers complain, and we could also reproduce ourselves, about a huge delay in RTP packets from 'A' to 'B' making the conversation incomprehensible or even no audio at all.

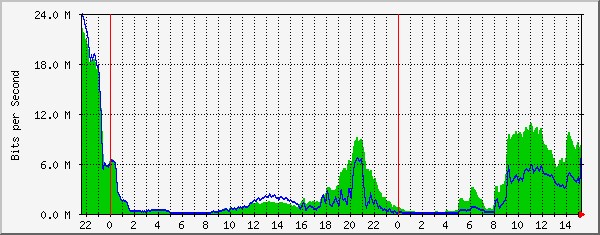

It's like RTP packets are lost from SBC to our internal leg. We can observe this difference in the graph monitoring the RTP throughput with 'B' (green is incoming packets from 'B', and blue is outgoing packets to 'B'):
Bad audio quality or no audio at all 512

I could observe that RTP was handle by DIN_2 (gateway service was green with DIN_2). The MAC address of voip1 on our router was the right one but we observed a hold time of 0 minutes whereas, for the other IPs, the hold time was increasing.
To quickly solve the problem, I rebooted DIN_2. All services were hosted on DIN_1 again and we can observe that IN/OUT is again the same on the graph after a reboot of DIN_2.

We are using release 3.1.112.

Best regards,


Last edited by ahsanul.moyeen on Thu Apr 22, 2021 7:14 am; edited 1 time in total

ahsanul.moyeen

Number of Messages : 349
Point : 653
Registration Date : 2020-11-24

Back to top Go down

Bad audio quality or no audio at all Empty Re: Bad audio quality or no audio at all

Post by ahsanul.moyeen Thu Apr 22, 2021 7:14 am

Hello,

Please upgrade it to 3.1.117. We have some problems on 3.1.112 related to HA and RTP.

https://tbsoftware.s3.ca-central-1.amazonaws.com/3.1.117/TBToolPack-3.1.117.3-Linux-centos7-x86_64-Install

And how to upgrade:

https://docs.telcobridges.com/tbwiki/Toolpack:Tsbc_System_Settings_3.1#Package_Upgrade


Best Regards,

ahsanul.moyeen

Number of Messages : 349
Point : 653
Registration Date : 2020-11-24
