Call Rate Limit Settings

Go down

Call Rate Limit Settings Empty Call Rate Limit Settings

Post by ahsanul.moyeen Thu Apr 15, 2021 4:23 am

Hello,

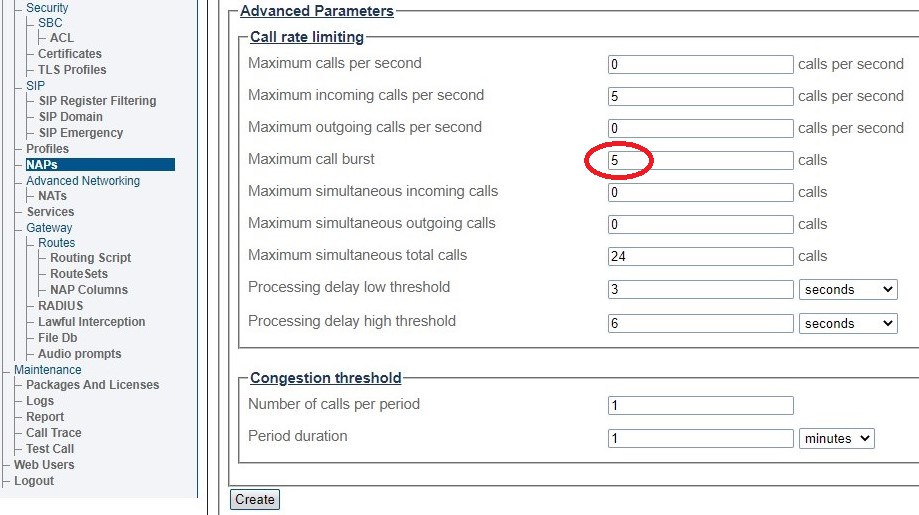

Can you please explain Maximum call burst settings for us? For example below will this allow only 5 calls per second incoming only or will this allow 5 + 5 total of 10 CPS? Our goal is to limit all termination traffic default to 5 CPS only.

Call Rate Limit Settings 312



Thank you,

ahsanul.moyeen

Number of Messages : 349
Point : 653
Registration Date : 2020-11-24

Back to top Go down

Call Rate Limit Settings Empty Re: Call Rate Limit Settings

Post by ahsanul.moyeen Thu Apr 15, 2021 4:25 am

Hello,

You will find the explanation in the below link:

https://docs.telcobridges.com/tbwiki/Parameter:_Maximum_call_burst

if you put your mouse near the parameters, it will also display the description:

Call Rate Limit Settings 411


Best Regards,

ahsanul.moyeen

Number of Messages : 349
Point : 653
Registration Date : 2020-11-24

Back to top Go down

Call Rate Limit Settings Empty Re: Call Rate Limit Settings

Post by ahsanul.moyeen Thu Apr 15, 2021 4:26 am

Hi,

I read the Wiki but still unclear on this setting. I was also told 0 means infinite so still not sure what the correct configuration is on these NAPs/trunks? If we want to limit to only allow 5 calls per second incoming do I set Maximum incoming calls per second to 5 and Maximum call burst to 0? Or do I also have to define Maximum call bust with value of 5 so it sets total limit to 5? There is also Maximum calls per second value too which I’m guessing also has to be defined as in this case 0 actually means infinite. Please let me know if setting below is correct as this will limits to 5 only without allowing any burst.

Call Rate Limit Settings 511


Thank you,

ahsanul.moyeen

Number of Messages : 349
Point : 653
Registration Date : 2020-11-24

Back to top Go down

Call Rate Limit Settings Empty Re: Call Rate Limit Settings

Post by ahsanul.moyeen Thu Apr 15, 2021 4:27 am

Hi,

Any update on the settings below? Please let me know if those setting are accurate as we are adding multiple NAPs at the moment and I want to ensure these are set properly.

Thanks.

ahsanul.moyeen

Number of Messages : 349
Point : 653
Registration Date : 2020-11-24

Back to top Go down

Call Rate Limit Settings Empty Re: Call Rate Limit Settings

Post by ahsanul.moyeen Thu Apr 15, 2021 4:28 am

Hello,

This limit is not 100% accurate per call base, but it will give pretty much the expected result upon a period of time.
E.g. if you set it to 5 maximum call/s, the 6th might not be dropped since it is dynamically calculating, but for a period of time, say 15 mins, the stats of the CPS shall be less than 5.

0 means no limit or not set.

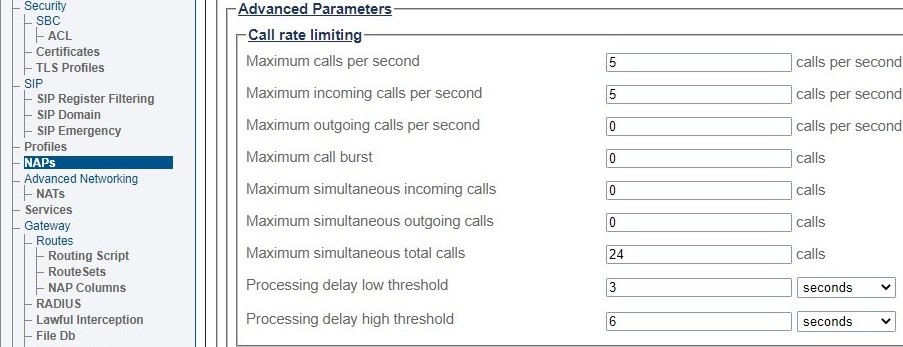

So setting like this would mean for this particular NAP:
- Maximum CPS (Calls Per Second):5
- Maximum concurrent calls: 24

Call Rate Limit Settings 611


Best Regards,

ahsanul.moyeen

Number of Messages : 349
Point : 653
Registration Date : 2020-11-24

Back to top Go down

Call Rate Limit Settings Empty Re: Call Rate Limit Settings

Post by ahsanul.moyeen Thu Apr 15, 2021 4:28 am

Hi,

Thank you for the clarification.

ahsanul.moyeen

Number of Messages : 349
Point : 653
Registration Date : 2020-11-24

Back to top Go down
