Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required)
We plan to supervise our TelcoBridges with LibreNMS software.
The first returns are OK (PU, Ram ... etc) but I am missing an essential part which is the supervision of the interco operator part.
My need is basically the following:
- Supervision of BPN (TDM Lines)
- Supervision of the percentage of use of each NAPs
- Supervision of each Hardware Unit (DOWN, Power Fault, etc.)
- Supervision of each member via a System Name if possible
Could you tell me if there are specific OIDs or SNMP traps for this?
The first returns are OK (PU, Ram ... etc) but I am missing an essential part which is the supervision of the interco operator part.
My need is basically the following:
- Supervision of BPN (TDM Lines)
- Supervision of the percentage of use of each NAPs
- Supervision of each Hardware Unit (DOWN, Power Fault, etc.)
- Supervision of each member via a System Name if possible
Could you tell me if there are specific OIDs or SNMP traps for this?
Last edited by ahsanul.moyeen on Thu Feb 11, 2021 8:05 am; edited 1 time in total
Guest- Guest
Re: Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required)
Please follow the below tbwiki link for your mentioned queries:
https://docs.telcobridges.com/tbwiki/SNMP#SNMP_traps

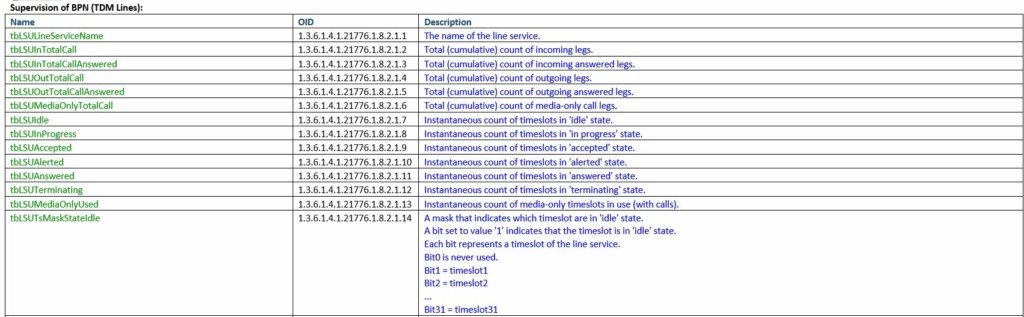

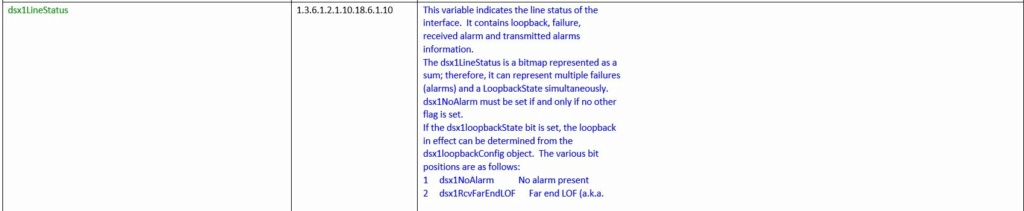

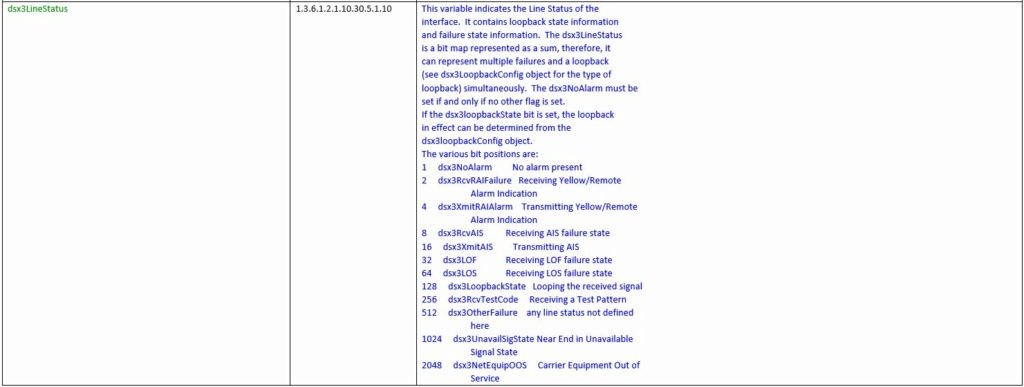

Please find below information for your reference:
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur10](https://i.servimg.com/u/f30/20/28/90/83/captur10.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur12](https://i.servimg.com/u/f30/20/28/90/83/captur12.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur11](https://i.servimg.com/u/f30/20/28/90/83/captur11.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur15](https://i.servimg.com/u/f30/20/28/90/83/captur15.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur13](https://i.servimg.com/u/f30/20/28/90/83/captur13.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur14](https://i.servimg.com/u/f30/20/28/90/83/captur14.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur16](https://i.servimg.com/u/f30/20/28/90/83/captur16.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur18](https://i.servimg.com/u/f30/20/28/90/83/captur18.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur17](https://i.servimg.com/u/f30/20/28/90/83/captur17.jpg)
Please let me know if the above information fulfills all your queries. Also, please feel free to contact me if you need further OID or SNMP Trap information.
https://docs.telcobridges.com/tbwiki/SNMP#SNMP_traps
Please find below information for your reference:
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur10](https://i.servimg.com/u/f30/20/28/90/83/captur10.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur12](https://i.servimg.com/u/f30/20/28/90/83/captur12.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur11](https://i.servimg.com/u/f30/20/28/90/83/captur11.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur15](https://i.servimg.com/u/f30/20/28/90/83/captur15.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur13](https://i.servimg.com/u/f30/20/28/90/83/captur13.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur14](https://i.servimg.com/u/f30/20/28/90/83/captur14.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur16](https://i.servimg.com/u/f30/20/28/90/83/captur16.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur18](https://i.servimg.com/u/f30/20/28/90/83/captur18.jpg)
![Supervision TelcoBridges via Libre NMS (specific OIDs or SNMP traps required) Captur17](https://i.servimg.com/u/f30/20/28/90/83/captur17.jpg)
Please let me know if the above information fulfills all your queries. Also, please feel free to contact me if you need further OID or SNMP Trap information.
