Segmented Network Empty Segmented Network

Post by RZaninelli Thu Nov 21, 2019 9:32 am

Hello all,

we are trying ProSBC as possible solution to replace some old SBC and we have some scenarios that is not working at our tests.

We have a segmented network, where some PABX are at network 11.27.0.0/16 and 10.50.0.0/16 which comunicates with interface Voip 2 (IP 172.16.143.5/28). Our management interface are at IP 192.168.3.30 and comunicate with some networks like 192.168.215.0/24, 192.168.116.0/24. In another side of the SBC the Trunks are transfered like the topology bellow:

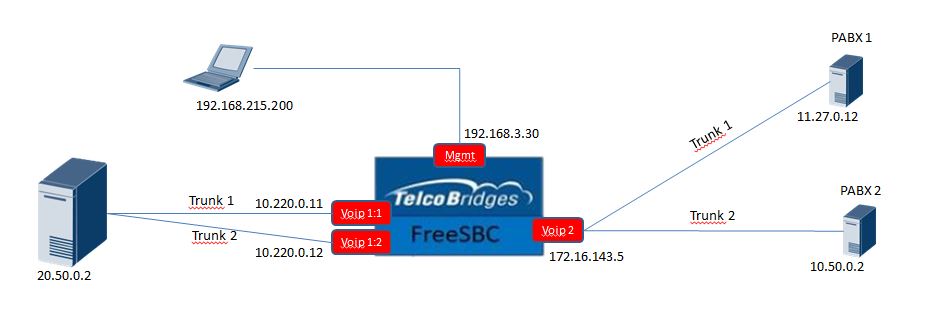

Segmented Network Topolo10

At our tests when we try to ping the IPs 11.27.0.12, 11.50.0.2, 20.50.0.2, the FreeSBC send the packets by the Mgmt interface through the gateway of the 192.168.3.30 interface.
is it possible to create static IP Routes to each of this networks? is it done in the freesbc web configuration or I have to do at the comand line at linux?

Thank you in advance.

RZaninelli

Number of Messages : 1
Point : 3
Registration Date : 2019-11-21

Back to top Go down

Segmented Network Empty Re: Segmented Network

Post by Admin Fri Jan 24, 2020 5:52 am

Please try the ping command in following format;

Code:
ping -I interface name IP address

Example;

ping -I voip2 11.27.0.12


Admin
Admin

Number of Messages : 508
Point : 1199
Registration Date : 2017-11-27
